Our process begins with a comprehensive product review where we evaluate the part’s design intent, functional requirements, and operating conditions. We work closely with clients to understand performance expectations, and any integration needs with surrounding systems. This stage allows us to identify opportunities for weight reduction, improved stiffness, or enhanced manufacturability before production begins. We determine the most suitable resin system and fiber architecture—whether unidirectional, woven, or hybrid—to balance performance and cost efficiency. The product review concludes with a formal validation of material selection, layup strategy, and tooling requirements. By taking this analytical approach early, we minimize downstream issues and ensure the part design is optimized for both strength and manufacturability. This step sets the foundation for consistent, high-quality carbon fiber components that meet demanding performance specifications.

In our Design for Manufacturing phase, we refine the initial concept to ensure it can be produced with maximum efficiency and repeatability. Our engineering team analyzes the 3D geometry, fiber orientation, and laminate stacking sequences to confirm that the design can be laid up without excessive distortion or bridging. We also review draft angles, radii, and flange dimensions to align with mold capabilities and ensure ease of demolding. During DFM we evaluate for thermal expansion coefficients and how parts will shirk or expand from the curing cycle. This level of scrutiny helps prevent costly rework and ensures the part will be on spec and perform as expected. By applying DFM principles from the outset, we deliver precision parts that meet rigorous standards for structural, and aesthetic performance.

Mold cutting is a precision-driven process where we create the foundation for every carbon fiber component we produce. Using advanced CNC machining technology, we cut and shape mold substrates—often made from high-temperature tooling board to exact CAD specifications. Accuracy at this stage is critical, as even the smallest deviation can affect part geometry, surface quality, and assembly alignment later in production. Our engineering team programs each cutting path with attention to contour fidelity, dimensional tolerance, and surface finish. We utilize multi-axis machining to achieve complex geometries, undercuts, and integrated alignment features where required. After cutting, each mold undergoes a detailed inspection using dimensional verification to confirm conformity to the digital model. This guarantees a perfect fit between mold halves and accurate mating surfaces for vacuum bagging or autoclave curing. We then apply specialized surface treatments and sealing agents to prepare the mold for layup, ensuring every carbon fiber part begins with a perfectly engineered foundation.

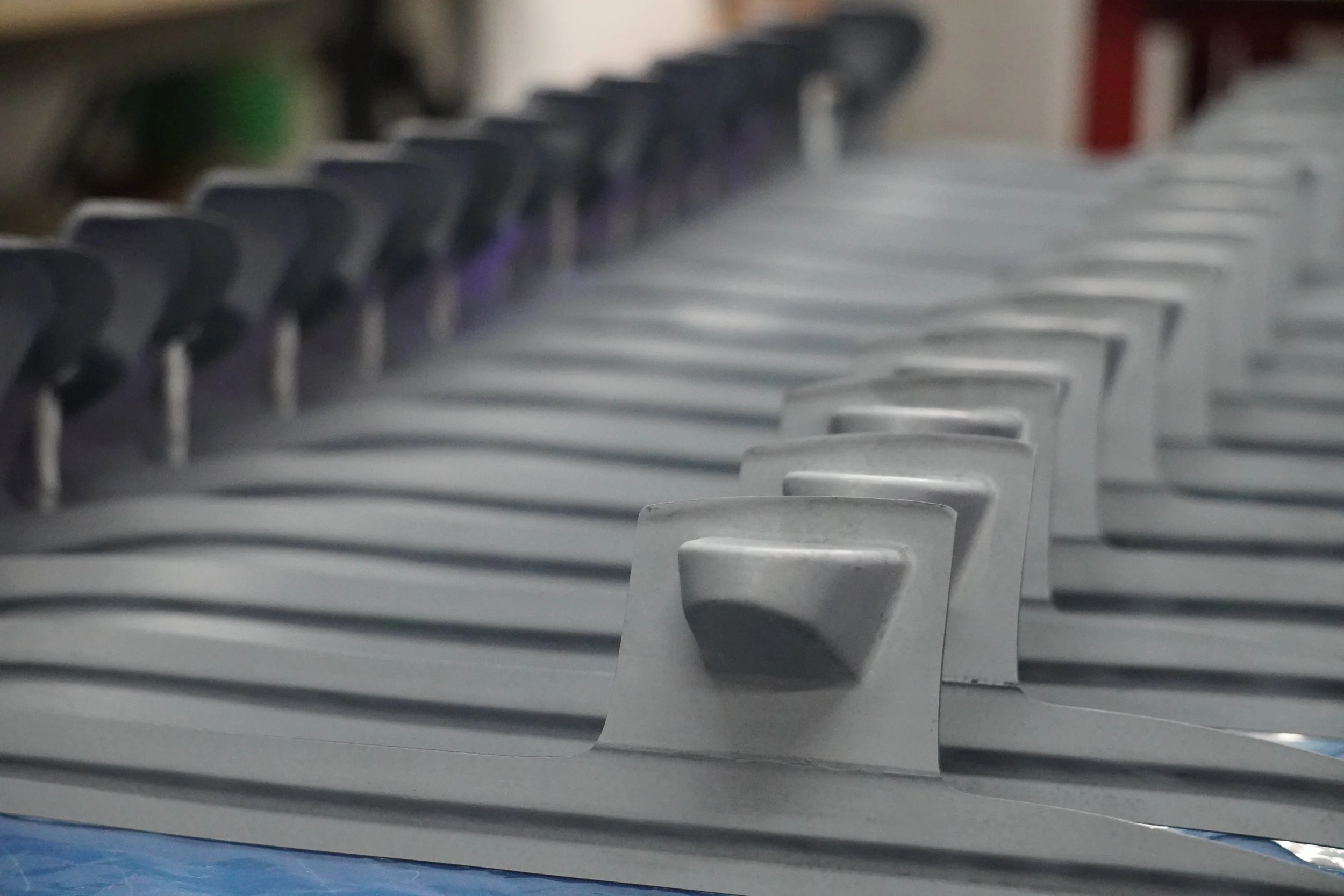

We build high-precision Carbon Fiber molds designed to withstand autoclave temperatures and pressures while maintaining dimensional accuracy. Each mold is produced by laying multiple layers of Carbon Fiber over a male pattern. Thus creating a female mold. Our Carbon Fiber molds feature optimized thermal expansion characteristics to ensure the molded parts maintain tight tolerances during curing. We apply specialized coatings to guarantee a clean release of the part from the mold. For complex geometries, we incorporate modular tooling and alignment features to facilitate efficient assembly and demolding. Every mold undergoes surface finishing and inspection to verify geometry, surface smoothness, and sealing integrity. By controlling every step of the mold creation process, we ensure each tool delivers consistency over multiple production cycles, resulting in carbon fiber components with uniform dimensional and aesthetic quality. Our tooling expertise directly supports the high precision and reliability that define our manufacturing capabilities.

Carbon pattern templating involves digitally or physically mapping and sequencing the carbon fiber plies to ensure optimal fiber orientation and structural performance. We use CAD/CAM software to create accurate templates that define each layer’s placement, rotation, and overlap. This digital templating ensures fiber continuity across critical load paths and minimizes distortion during layup and curing. Each template specifies orientation angles, ply boundaries, and stacking sequences to meet engineering specifications. Our technicians verify every pattern against the mold geometry to ensure alignment with surface contours and flange edges. By managing ply orientation and pattern registration at this stage, we maintain control over stiffness, strength, and dimensional accuracy. The templating process also allows us to streamline production through clear documentation, ensuring that every part is built exactly to specification. This high level of planning translates to consistency, repeatability, and predictable mechanical performance across all components we produce.

Kit cutting is the process of organizing all pre-cut carbon plies into complete, ready-to-layup sets—known as kits. We prepare each kit according to its specific layup schedule, ensuring plies are grouped, sequenced, and labeled for maximum efficiency during manufacturing. Each kit is stored in temperature-controlled conditions to prevent moisture absorption or resin degradation. Our precision cutting and kitting process minimizes handling time, reduces potential for error, and guarantees that every technician can follow the build with minimal interference. This level of organization ensures smooth workflow transitions and eliminates unnecessary downtime during production. By standardizing our kit cutting operations, we achieve traceability, consistency, and quality assurance from material preparation through to final layup—supporting efficient, high-accuracy manufacturing every time.

Hand layup is where the craftsmanship and technical expertise of our team come together. Each ply is placed meticulously into the mold according to the layup schedule, ensuring precise fiber orientation, alignment, and compaction. Our technicians follow strict handling protocols to prevent contamination and maintain fiber integrity throughout the process. During layup, we apply controlled pressure to eliminate air pockets and ensure uniform laminate thickness. For complex geometries, we use precision cutting guides, tack resins, and temporary tooling aids to maintain perfect ply conformity. The hand layup process allows for maximum control over fiber direction and material flow, which directly impacts part performance and surface finish. By combining manual precision with technical discipline, we produce carbon fiber laminates that are structurally optimized, dimensionally accurate, and visually flawless.

De-bulking is an essential intermediate process used to consolidate the laminate during layup. After several plies are placed, we apply vacuum pressure to compress the stack and remove any trapped air or volatiles. This ensures uniform fiber volume and prevents voids or delamination in the final part. De-bulking also stabilizes the layup, preventing ply shifting and distortion as additional layers are added. We use specialized breather materials, release films, and vacuum bagging techniques to ensure even pressure distribution and clean release. Each de-bulk cycle is carefully timed and monitored to maintain resin flow and fiber integrity. By performing this step repeatedly throughout the layup, we build a dense, high-quality laminate with excellent interlaminar bonding. Proper de-bulking directly influences final part strength, dimensional accuracy, and surface finish. Our disciplined approach ensures every part cured in the autoclave starts with a fully consolidated, defect-free layup.

Autoclave curing is where the composite transforms from a flexible layup into a rigid, high-performance part. We use precisely controlled temperature and pressure cycles to cure the resin matrix, ensuring complete polymerization and void-free consolidation. During the process, vacuum bagged parts are subjected to elevated pressure—typically up to 100 psi—and temperatures between 120°C and 180°C, depending on the resin system. This combination of heat and pressure drives out trapped air, enhances fiber-to-resin bonding, and produces a compact, structurally stable laminate. Our autoclave systems feature real-time monitoring of pressure, vacuum, and temperature to guarantee consistent cure profiles across every batch. The result is a component with optimal mechanical properties, dimensional accuracy, and a flawless surface finish. Autoclave curing delivers aerospace-grade quality and repeatability, providing the strength and reliability that define our carbon fiber products.

Once curing is complete, the de-molding process is carried out with precision to protect both the part and the tooling. We allow controlled cooling of the mold to prevent thermal shock or dimensional distortion before gently releasing the component. Using specialized non-marring tools and precise lifting techniques, we separate the part without compromising surface integrity. We inspect the mold and part immediately after release to verify surface quality and detect any potential defects early. Our de-molding approach ensures parts retain their dimensional accuracy and cosmetic finish. This stage is critical for maintaining mold longevity and preventing unnecessary surface repair or rework. By treating this process with the same level of precision as fabrication, we ensure consistent quality and maintain the efficiency of our production workflow.

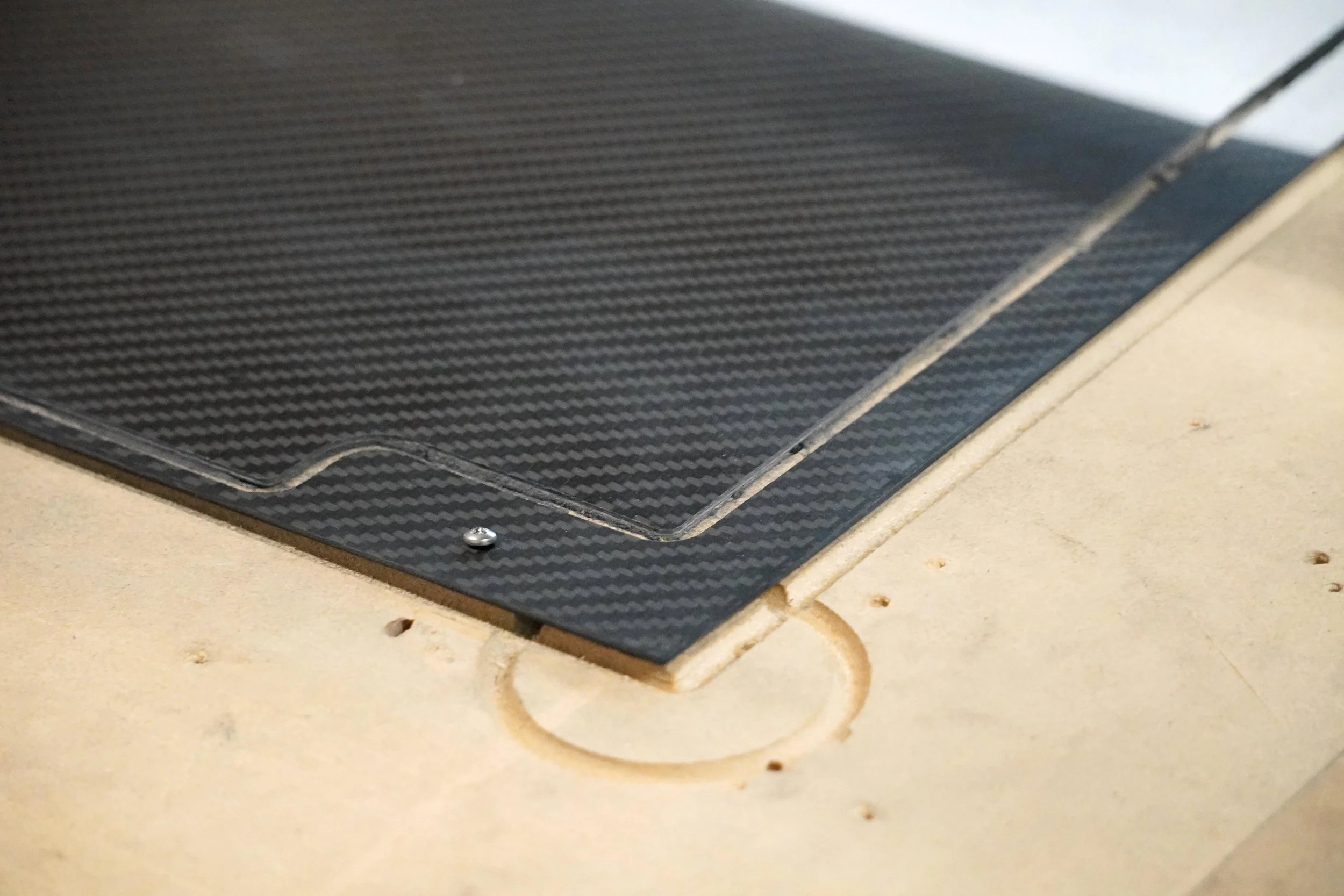

After de-molding, we trim the component to its final shape using routers, diamond-coated cutting tools, or precision abrasive systems. We follow the engineering model and trimming fixtures to achieve exact edge profiles, hole placements, and mounting features. Our trimming process ensures tight tolerances and repeatability across production batches. We also implement dust control and extraction systems to maintain a clean environment and operator safety. Once trimming is complete, all edges are inspected and, if required, sealed with resin to prevent moisture ingress or delamination. By maintaining exacting control during trimming, we preserve the part’s structural integrity, aesthetic quality, and assembly compatibility. Precision trimming transforms each cured shell into a finished component ready for fitting, bonding, or finishing operations.

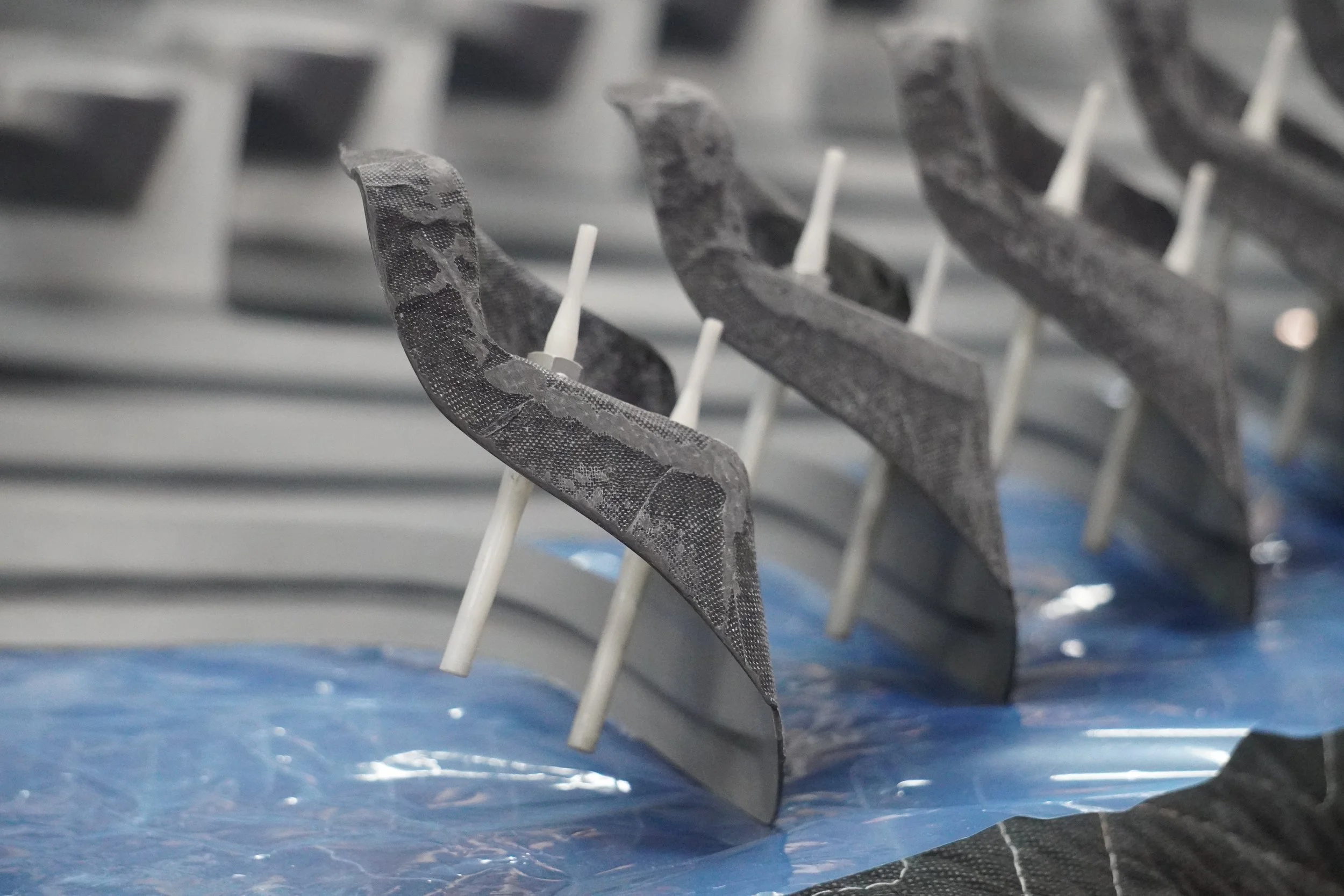

Insert bonding integrates metallic or composite hardware into the carbon fiber structure, providing secure attachment points for mechanical fastening or assembly. We use structural adhesives and controlled clamping pressure to ensure optimal bond strength between the insert and the composite substrate. Prior to bonding, surfaces are cleaned, abraded, and treated to maximize adhesion. Inserts are positioned using precision jigs to maintain alignment and dimensional accuracy. We then cure the bonded assemblies under heat or pressure, depending on adhesive specifications, and conduct pull and shear testing to validate performance. Proper insert bonding is essential for load transfer and long-term durability, especially in applications subjected to vibration or mechanical stress.

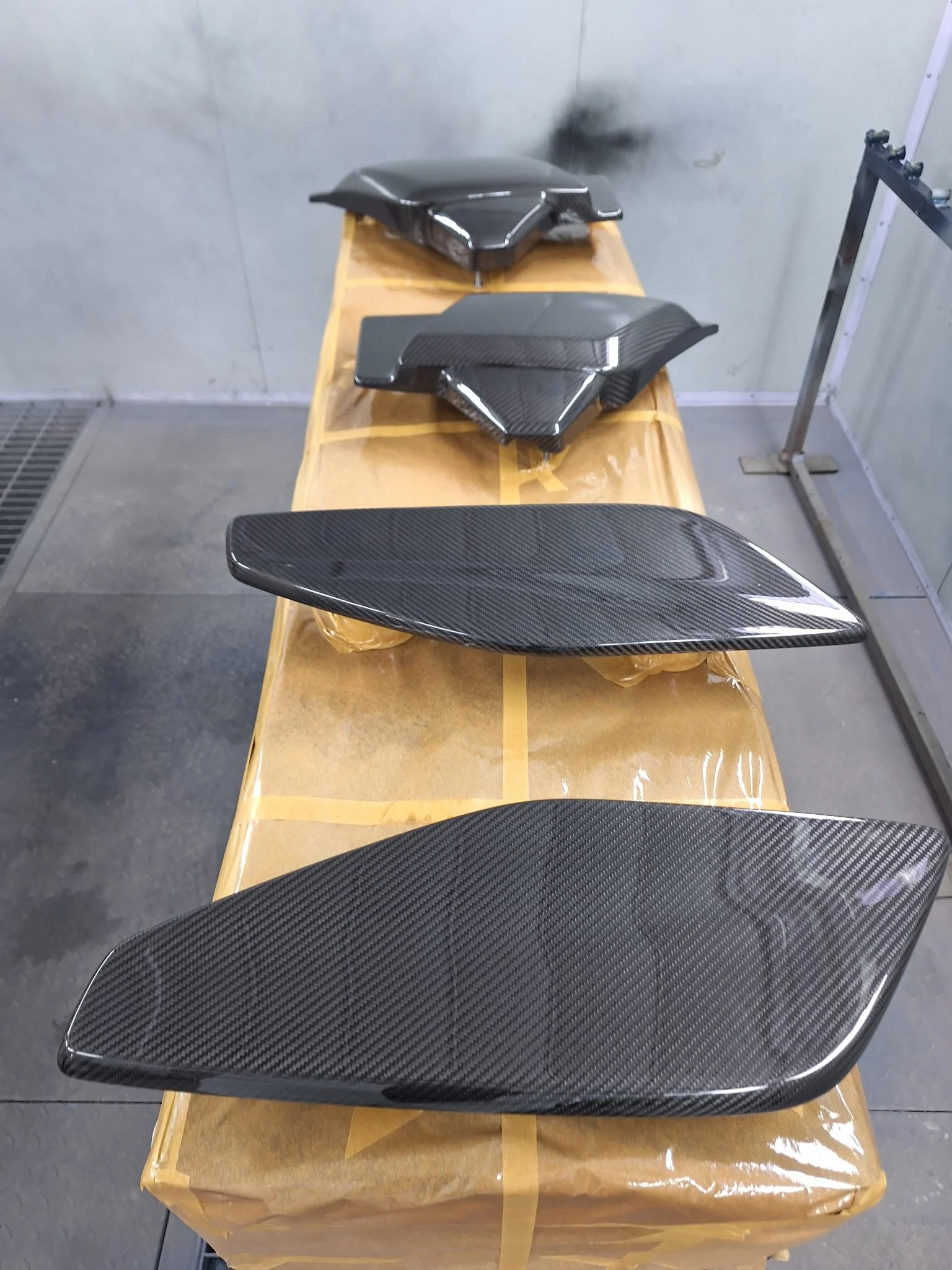

In the product preparation phase, we complete all necessary finishing and cosmetic treatments to ensure the part meets both functional and aesthetic standards. This may include surface sanding, clear coating, painting, or polishing to achieve the desired surface quality. Surface cleanliness is maintained throughout to preserve the component’s high-quality finish. Our preparation process emphasizes consistency and presentation—each part is prepared to be both visually refined and structurally flawless. This stage bridges the gap between technical excellence and visual craftsmanship, ensuring the product is fully ready for delivery, assembly, or client inspection.

Quality control is at the core of our production philosophy. Every carbon fiber part undergoes a rigorous inspection process to ensure compliance with dimensional, mechanical, and aesthetic specifications. We employ dimensional testing methods to detect voids, delamination, or surface irregularities. Tolerances are verified using measurement tools and coordinate measuring systems. Each part is reviewed against engineering documentation and process records to ensure full traceability from raw materials to final delivery. We maintain documented inspection criteria and continuous process monitoring to uphold the highest standards of repeatability and reliability. Our commitment to quality control ensures every component leaving our facility performs as designed—lightweight, strong, and built to last.
